CNC LATHE

CNC Machines

TC-150

MODEL : TC-150

TC-200

MODEL : TC-200

MODEL : TC-300

MODEL : TM-350

Vertical Turning Lathe (VTL)

VT 500

MODEL : VT 500

VT 650

MODEL : VT 650

VT 1000

MODEL : VT 1000

VERTICAL TURN MILL (VTM) - VT-950 ML

MODEL : VT-950 ML

×

TC-150 Specifications

MODELTC-150
Chuck Size150 mm
Max Turning Diameter250 mm
Max Turning Length300 / 400 mm
Swing Over Bed400 mm
Bar CapacityØ40 mm
Spindle NoseA2-5
Spindle BoreØ52 mm
Max Spindle Speed4,500 RPM
Spindle Motor Power7.5 / 11 kW
Turret Stations8 / 10
Tool Size20 × 20 mm
X-Axis Travel160 mm
Z-Axis Travel350 / 450 mm
GuidewaysLM Guideways
Positioning Accuracy±0.005 mm
Repeatability±0.003 mm
ControllerFANUC / Mitsubishi / Siemens
ApplicationSmall Precision Components
×

TC-200 Specifications

MODELTC- 200
Chuck Size200 mm
Max Turning Diameter350 mm
Max Turning Length500 / 600 mm
Swing Over Bed520 mm
Bar CapacityØ52 mm
Spindle NoseA2-6
Spindle BoreØ65 mm
Max Spindle Speed4,000 RPM
Spindle Motor Power11 / 15 kW
Turret Stations8 / 10 / 12
Tool Size25 × 25 mm
X-Axis Travel200 mm
Z-Axis Travel550 / 650 mm
GuidewaysLM Guideways
Positioning Accuracy±0.006 mm
Repeatability±0.004 mm
ControllerFanuc / Mitsubishi / Siemens
ApplicationMedium Duty Machining
×

TC-300 Specifications

MODELTC- 300
Chuck Size300 mm
Max Turning Diameter500 mm
Max Turning Length800 / 1000 mm
Swing Over Bed700 mm
Bar CapacityØ75 mm
Spindle NoseA2-8
Spindle BoreØ90 mm
Max Spindle Speed3,000 RPM
Spindle Motor Power18.5 / 22 kW
Turret Stations10 / 12
Tool Size32 × 32 mm
Boring Bar SizeØ50 mm
X-Axis Travel280 mm
Z-Axis Travel900 / 1100 mm
GuidewaysBox / LM (Optional)
Positioning Accuracy±0.008 mm
Repeatability±0.005 mm
ControllerFanuc / Mitsubishi / Siemens
ApplicationHeavy Duty Components
×

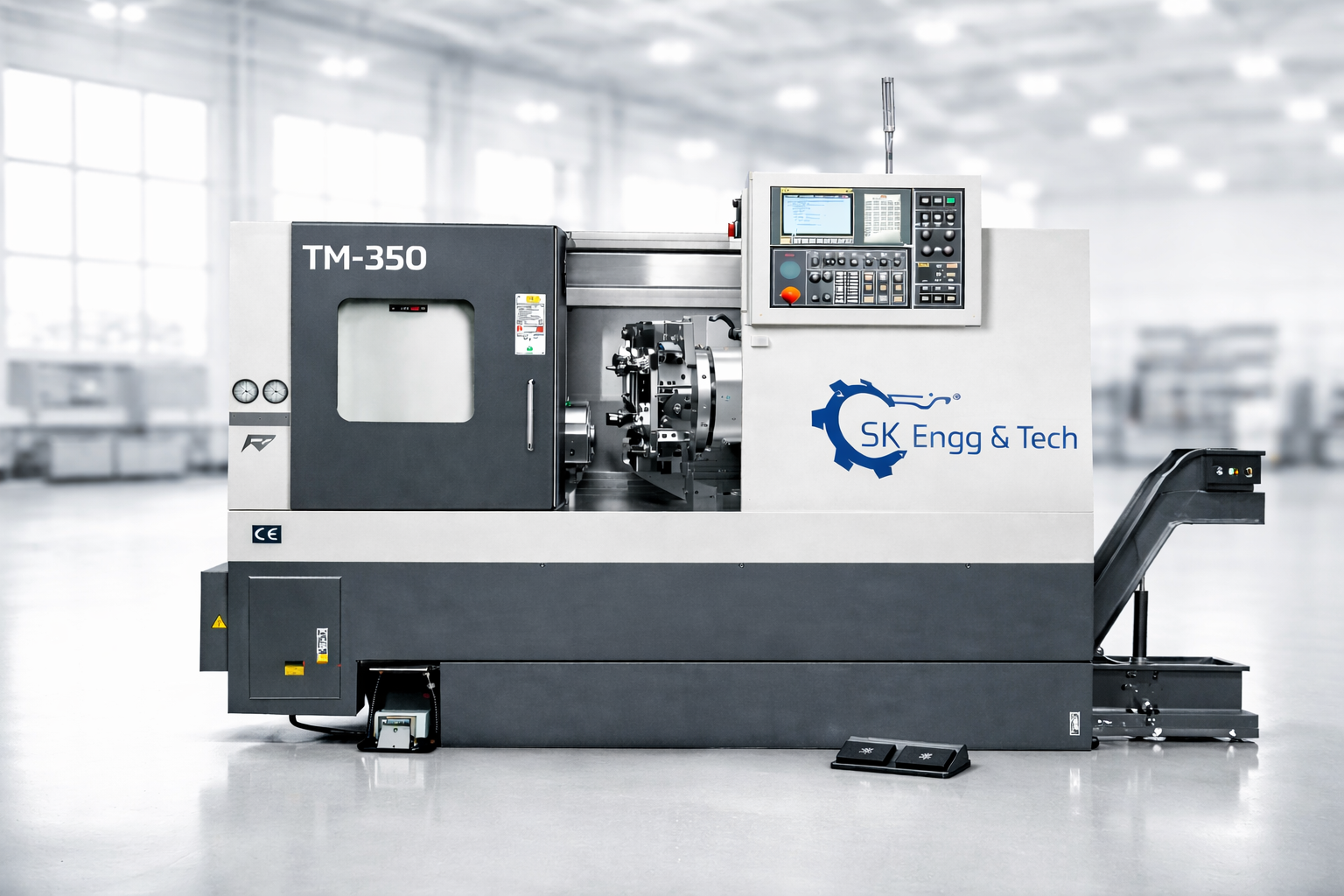

TURN MILLING CENTRE

Model TM-350
Chuck Size 250 / 300 mm
Max Turning Diameter 350 mm
Max Turning Length 600 / 800 mm
Bar Capacity Ø65 mm
Spindle Nose A2-6 / A2-8
Spindle Bore Ø75 mm
Max Spindle Speed 4,000 RPM
Spindle Motor Power 15 / 18.5 kW
Live Tool Speed 4,000 / 5,000 RPM
Live Tool Motor Power 5.5 kW
C-Axis Resolution 0.001°
Turret Type BMT / VDI
Tool Stations 12
Y-Axis Travel ±50 mm
Rapid Traverse X/Y/Z 30 / 30 / 30 m/min
Guideways LM Guideways
Controller Fanuc / Mitsubishi / Siemens
Application Turning + Milling in One Setup
×

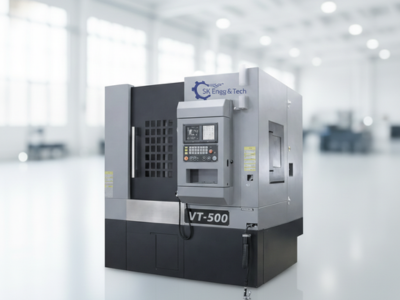

VT 500 Specifications

MODELVT 500
Chuck Diameter500 mm
Max Turning Diameter650 mm
Max Turning Height600 mm
Max Job Weight1,500 kg
Table Speed1,200 RPM
Table Motor Power18.5 kW
Ram Size200 × 200 mm
X-Axis Travel500 mm
Z-Axis Travel600 mm
GuidewaysBox Guideways
Positioning Accuracy±0.01 mm
ControllerFanuc / Mitsubishi / Siemens
ApplicationLarge & Heavy Components
×

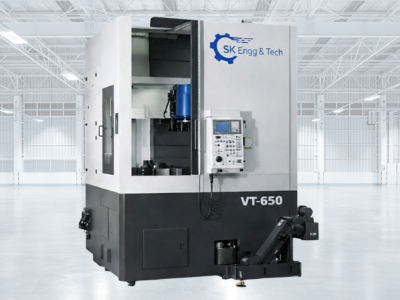

VT 650 Specifications

MODELVT 650
Chuck Diameter650 mm
Max Turning Diameter900 mm
Max Turning Height800 mm
Max Job Weight3,000 kg
Table Speed1,000 RPM
Table Motor Power22 / 30 kW
Ram Size220 × 220 mm
GuidewaysHeavy Duty Box
ControllerFanuc / Mitsubishi / Siemens
ApplicationHeavy Industrial Parts
×

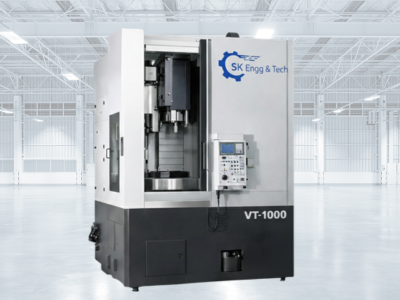

VT 1000 Specifications

MODELVT 1000
Chuck Diameter1,000 mm
Max Turning Diameter1,400 mm
Max Turning Height1,000 mm
Max Job Weight6,000 kg
Table Speed800 RPM
Table Motor Power37 / 45 kW
GuidewaysExtra Heavy Duty Box
ControllerFanuc / Mitsubishi / Siemens
ApplicationExtra Heavy Components
×

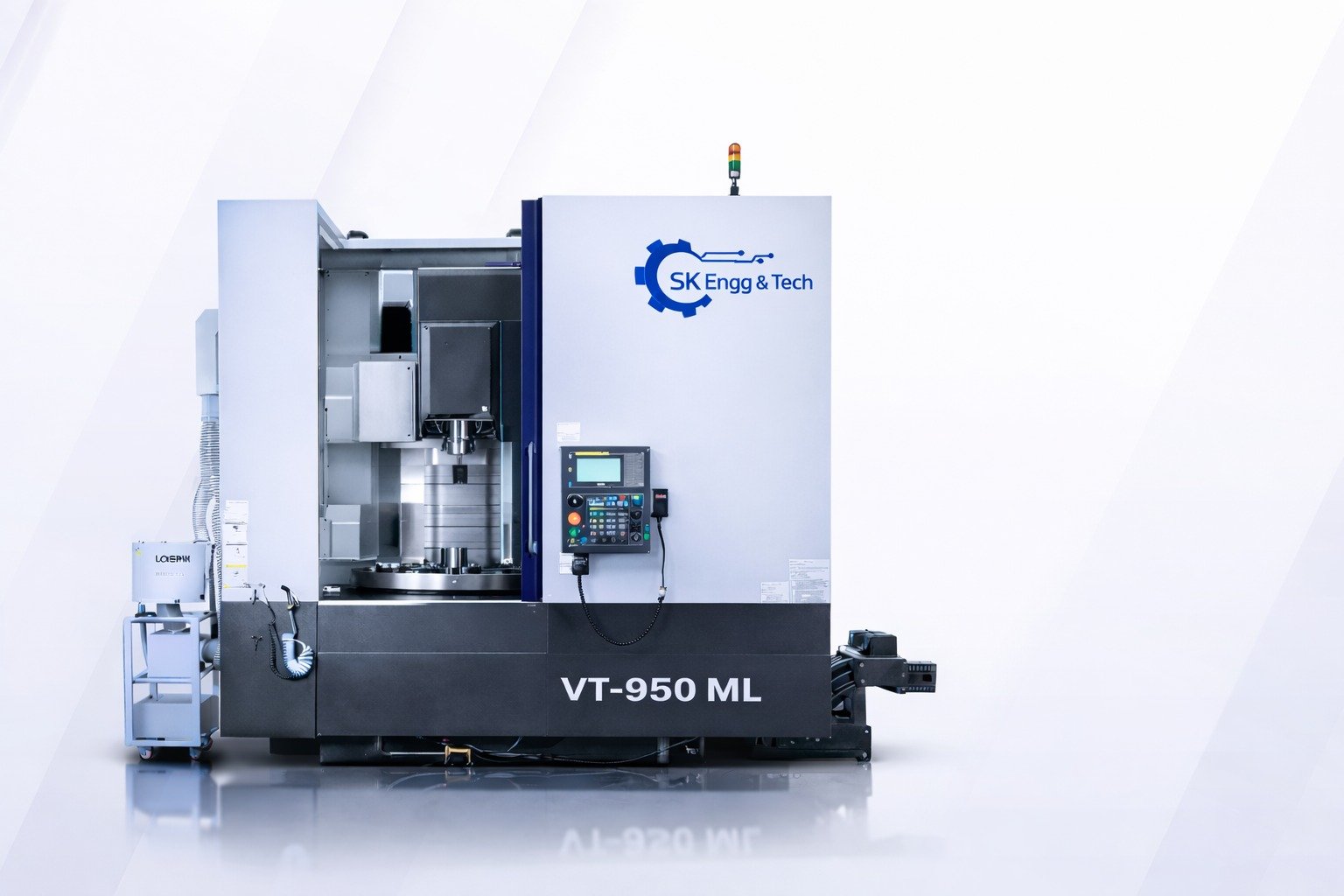

VT-950 ML Specifications

MODELVT-950 ML
Chuck Diameter900 / 950 mm
Max Turning Diameter1,200 mm
Max Turning Height900 mm
Max Job Weight5,000 kg
Table Speed900 RPM
Table Motor Power30 / 37 kW
Milling Spindle Speed6,000 RPM
Milling Motor Power18.5 kW
Spindle TaperBT40 / HSK-A63
ATC Capacity12 / 24 Tools
X-Axis Travel900 mm
Z-Axis Travel800 mm
Y-Axis Travel±100 mm
GuidewaysHeavy Duty Box
Positioning Accuracy±0.01 mm
ControllerFanuc / Mitsubishi / Siemens
ApplicationHeavy Turning + Milling
